Prefect

Demo Repository

https://github.com/uuboyscy/prefect-demo

Quick start

Register

https://www.prefect.io

Login with OTP

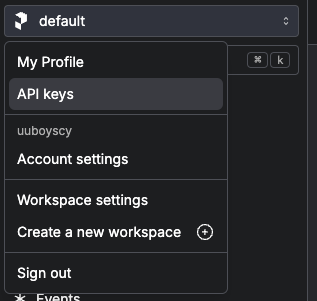

Get token

• Click API keys


• Click Create API key

• Determine API key information

• Login with token

Develop environment

Clone this repository for development
https://github.com/uuboyscy/prefect-demo

Login

prefect cloud login --k <your token>

Get Start for Your First Flow

Go back to home page and click Get started You will find the authentication turn green.
Press Next and follow the steps, then you can create the first flow.

Flow and task

f_01_quick_start.py

import pandas as pd
from prefect import flow, task

@task
def e_data_source_1() -> pd.DataFrame:
    print("Getting df1.")
    return pd.DataFrame(data=[[1], [2]], columns=["col"])

@task
def e_data_source_2() -> pd.DataFrame:
    print("Getting df2.")
    return pd.DataFrame(data=[[3], [4]], columns=["col"])

@task
def t_concat(df1: pd.DataFrame, df2: pd.DataFrame) -> pd.DataFrame:
    print("Concating df1 and df2.")
    return pd.concat([df1, df2]).reset_index(drop=True)

@task
def l_db1(df: pd.DataFrame) -> None:
    print("Loading df to db1.")
    print(df)
    print("===============")

@task
def l_db2(df: pd.DataFrame) -> None:
    print("Loading df to db2.")
    print(df)
    print("===============")

@flow(name="f_01_quick_start")
def f_01_quick_start() -> None:
    df1 = e_data_source_1()
    df2 = e_data_source_2()
    df = t_concat(df1, df2)
    l_db1(df)
    l_db2(df)

if __name__ == "__main__":
    f_01_quick_start()

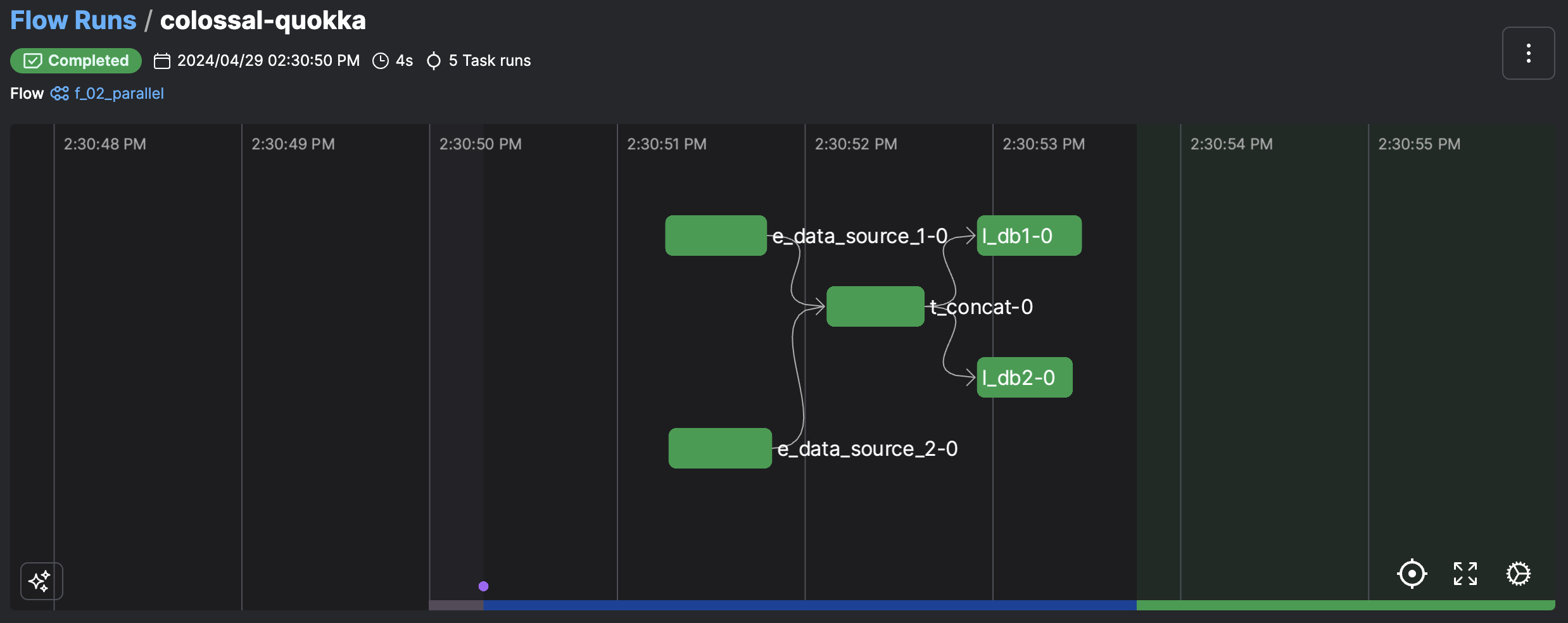

f_02_async_task

import pandas as pd
from prefect import flow, task

@task
def e_data_source_1() -> pd.DataFrame:
    print("Getting df1.")
    return pd.DataFrame(data=[[1], [2]], columns=["col"])

@task
def e_data_source_2() -> pd.DataFrame:
    print("Getting df2.")
    return pd.DataFrame(data=[[3], [4]], columns=["col"])

@task
def t_concat(df1: pd.DataFrame, df2: pd.DataFrame) -> pd.DataFrame:
    print("Concating df1 and df2.")
    return pd.concat([df1, df2]).reset_index(drop=True)

@task
def l_db1(df: pd.DataFrame) -> None:
    print("Loading df to db1.")
    print(df)
    print("===============")

@task
def l_db2(df: pd.DataFrame) -> None:
    print("Loading df to db2.")
    print(df)
    print("===============")

@flow(name="f_02_async_task")
def f_02_async_task() -> None:
    df1 = e_data_source_1.submit()
    df2 = e_data_source_2.submit()
    df = t_concat.submit(
        df1, df2, wait_for=[df1, df2],
    )
    l_db1.submit(df, wait_for=[df])
    l_db2.submit(df, wait_for=[df])

if __name__ == "__main__":
    f_02_async_task()

Register flow

Work pool and worker

• Create a work Pool test and Queue docker-deployment

• Select Process Worker

• Name the Worker test-process and then create it

• Start a Worker

  prefect worker start --pool "test-process"

Block

• Create a GitHub Repository Block

Build Deployment

from flows.test.hello_world_flow import hello_world_flow


if __name__ == "__main__":
    from prefect_github import GitHubRepository

    hello_world_flow.from_source(
        source=GitHubRepository.load("github-repository-uuboyscy"),
        entrypoint="src/flow/test/hello_world_flow_flow.py:hello_world_flow",
    ).deploy(
        name="test-deploy",
        tags=["test", "project_1"],
        work_pool_name="test-subproc",
        cron="1 * * * *"
    )

Schedule

• Setup on web GUI

Prefect cloud status

https://prefect.status.io
